Hydraulic Hose Leaking: What to Do Before It Gets Worse.

If you detect a hydraulic hose leaking, immediately stop using the equipment, isolate the work area, and ensure the system is safely depressurized before inspection. Contact ENZED® on 13 13 62 to dispatch an on-site mobile hose service, allowing a technician to replace the compromised line efficiently before it causes a catastrophic breakdown.

A leaking hydraulic hose should never be treated as a minor issue. What starts as a small weep, drip or oil mist can quickly become a larger failure once the equipment is working under pressure, heat, vibration or repeated movement.

Hydraulic hose leaks are common across excavators, loaders, tractors, forklifts, trucks, cranes, compactors, processing equipment and industrial machinery. The priority is to make the equipment safe, identify the source of the leak and arrange the right replacement hose, fitting or assembly before the failure causes more downtime.

Important safety note

Hydraulic systems can operate under extreme pressure. This article is general information only and is not a substitute for site safety procedures, equipment manufacturer instructions or advice from a qualified technician. Always stop the machine safely, isolate the work area and ensure the hydraulic system is depressurised before inspection or repair.

First step: stop and make the equipment safe.

If hydraulic oil is leaking from a hose, fitting or connection point, stop operating the machine as soon as it is safe to do so. Follow the site’s safety procedures, isolate the work area and make sure the hydraulic system is depressurised by a trained person before anyone attempts to inspect or remove the hose.

Never use your hand to check for a hydraulic leak. High-pressure hydraulic fluid can penetrate skin and cause serious injury. Even a small pinhole leak can be dangerous under pressure, so keep people clear and treat the issue seriously.

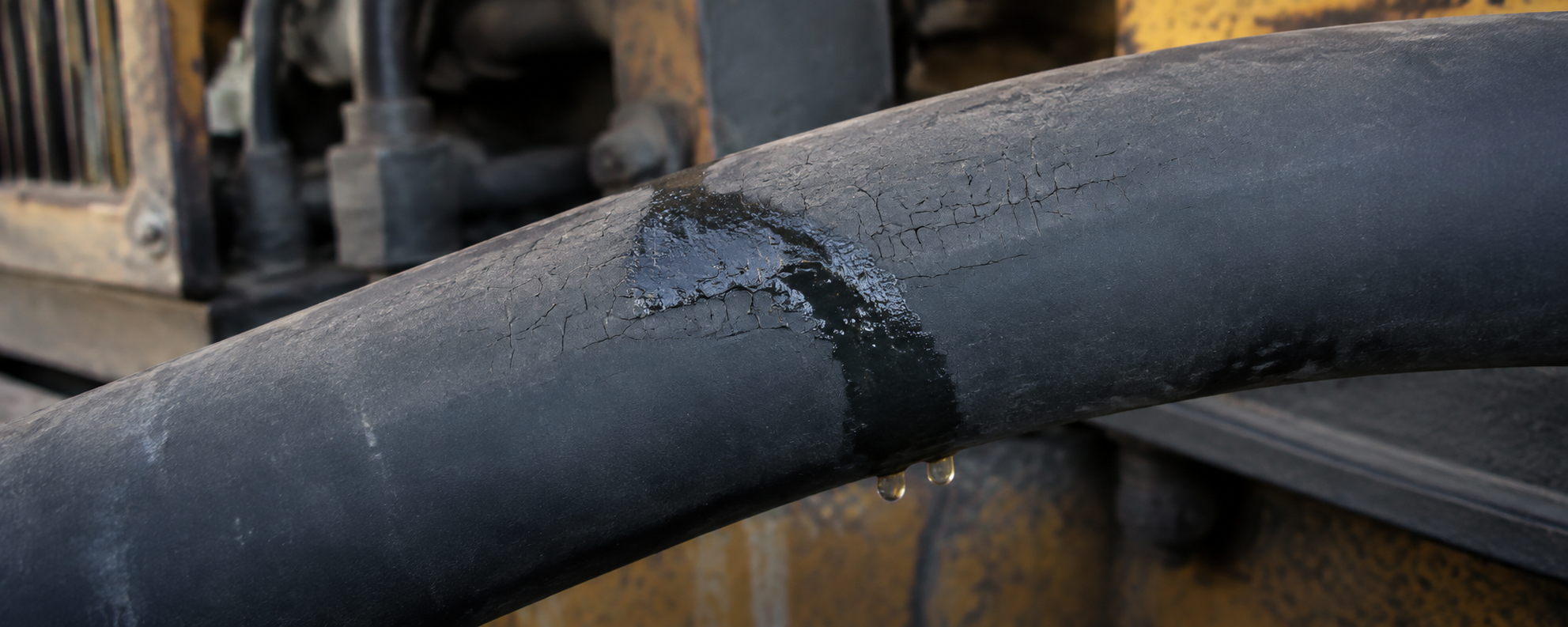

Signs of a leaking hydraulic hose.

A hydraulic hose leak may be obvious, or it may only appear while the equipment is operating under load.

Common signs include:

Hydraulic oil dripping from a hose or fitting
Oil spray or mist near a hydraulic line
Wet, shiny or oily hose covers
Oil pooling under the machine
Hydraulic fluid levels dropping
Loss of hydraulic power or weak machine movement
Dirt, dust or debris sticking to an oily area
A cracked, rubbed, swollen or damaged hose cover
A leak that appears only when the machine is moving or under load

If the hose is visibly damaged, swollen, abraded or leaking near the crimp, it should be assessed and replaced rather than patched.

Why temporary hose fixes are risky.

Tape, clamps, sealants and other temporary patches are not suitable for leaking hydraulic hoses. Hydraulic systems can operate under high pressure, and a patched hose is unlikely to withstand pressure spikes, vibration, heat, movement or repeated machine cycles.

A temporary fix can also make the problem worse by hiding the leak, delaying proper repair or allowing the hose to fail suddenly while the equipment is operating. The safer and more reliable approach is to replace the failed hose with a correctly specified hose assembly.

Is the leak from the hose, fitting or seal?.

Not every hydraulic leak is caused by the hose body itself. The leak may be coming from the hose, fitting, coupling, adaptor, O-ring or sealing face.

Common leak points include:

Split or burst hose sections
Pinholes in the hose cover
Leaks near the crimped fitting
Damaged thread connections
Loose or worn adaptors
Failed O-rings or seals
Damaged or contaminated quick couplings
Hoses rubbing through against machine components

Identifying the exact leak point matters. Replacing the wrong component can lead to repeat failure, unnecessary downtime or further damage to the system.

Information that helps ENZED® identify the right replacement.

To help your local ENZED® Service Centre or HOSE DOCTOR® technician identify the correct replacement hose or fitting, provide as much detail as possible.

The existing hose assembly is often the best reference. It helps confirm the hose length, fitting orientation, connection type and any obvious signs of rubbing, twisting, heat exposure or incorrect routing.

Useful information includes:

Machine make and model
Hose location on the equipment
Photos of the failed hose and both hose ends
Hose markings, if visible
Hose length and diameter
Fitting types and angles
Operating environment or application
Whether the hose has failed before
The existing hose assembly, if it can be safely removed

What causes hydraulic hoses to leak?.

Hydraulic hose leaks can happen for several reasons. Some are caused by age and wear, while others relate to the application, hose selection or installation.

Common causes include:

Abrasion from rubbing against guards, brackets or other hoses
Incorrect routing or tight bend radius
Vibration and repeated movement
Impact damage from debris, tools or worksite contact
Heat exposure
Pressure spikes or incorrect hose pressure rating
Loose or damaged fittings
Failed seals or O-rings
Contamination around couplings or connection points
Hose fatigue from long service life

If the same hose keeps leaking or failing, it may indicate a routing, clamping, protection or specification issue that should be reviewed before the next replacement is fitted.

How ENZED® can help with leaking hydraulic hoses.

ENZED® can help identify and replace leaking hydraulic hose assemblies through local Service Centre support and HOSE DOCTOR® mobile service where available.

Your local ENZED® team can assist with:

Matching the failed hose assembly
Supplying hydraulic hoses, fittings and adaptors
Preparing replacement hose assemblies
Identifying whether the issue is with the hose, fitting, seal or coupling
Providing high-pressure hose support
Assisting with onsite hose replacement where mobile support is available
Advising on common causes of repeat hose failure, including abrasion, routing and pressure issues

The aim is to help you get the correct replacement fitted safely and reduce avoidable downtime.

When should you call for support?.

You should contact ENZED® if:

A hydraulic hose is visibly leaking
The hose is cracked, swollen, rubbed or damaged
Oil is leaking from a fitting or coupling
The machine is losing hydraulic power
The leak is getting worse under load
The equipment cannot be safely moved
A hose has failed more than once in the same location

The earlier the issue is addressed, the lower the risk of a full hose failure, extended downtime or damage to surrounding components.

Need help with a leaking hydraulic hose?

Stop the equipment, make the area safe and contact your local ENZED® Service Centre.

If possible, have photos, hose markings, machine details and the failed hose assembly ready. This will help the ENZED® team identify the correct hose and fitting requirements faster.
