Hydraulic Fitting Leaking: Is It the Hose, Fitting or Seal?.

If a hydraulic fitting is leaking or spraying oil under pressure, immediately shut down the machine and safely depressurize the system before inspecting the joint. Contact ENZED® on 13 13 62 to dispatch an on-site mobile hose service to identify whether the fluid leak is caused by a fractured fitting, cross-threaded adaptor, blown O-ring, or a compromised hose crimp.

A leaking hydraulic fitting can be frustrating because the source is not always obvious. Oil may appear around the fitting, but the real issue could be a damaged hose, loose adapter, failed O-ring, cracked sealing face, worn coupling or incorrect fitting type.

Hydraulic fitting leaks are common across excavators, loaders, tractors, forklifts, trucks, trailers, cranes, compactors, processing equipment and industrial hydraulic systems. The priority is to make the equipment safe, identify the true leak point and replace the correct component before the issue gets worse.

Important safety note

Hydraulic systems can operate under extreme pressure. This article is general information only and is not a substitute for site safety procedures, equipment manufacturer instructions or advice from a qualified technician. Always stop the machine safely, isolate the work area and ensure the hydraulic system is depressurised before inspection or repair.

First step: make the connection safe to inspect.

If oil is leaking from a hydraulic fitting, stop operating the machine as soon as it is safe to do so. Follow site safety procedures, isolate the area and make sure the hydraulic system is depressurised by a trained person before anyone checks or removes the fitting.

Do not tighten, loosen or handle hydraulic fittings while the system is under pressure. High-pressure hydraulic fluid can cause serious injury, and a fitting that appears to be only slightly leaking can fail suddenly under load.

Signs the fitting or connection may be the issue.

Hydraulic fitting leaks often show up around joins, hose ends, couplings or adaptors.

Common signs include:

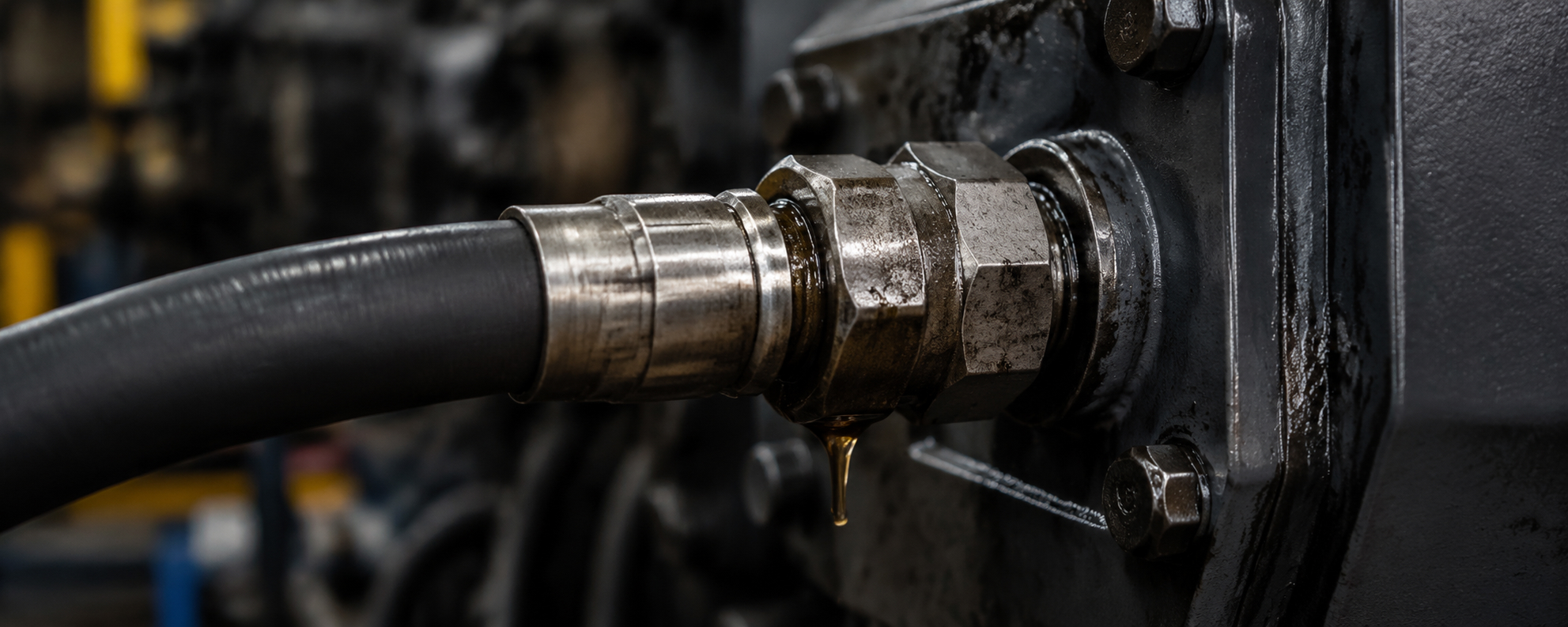

Oil weeping around a fitting or adaptor
Oil collecting at the crimped hose end
Hydraulic fluid dripping from a threaded connection
A quick coupling that leaks when connected or disconnected
Oil appearing after the machine is placed under load
Dirt and dust building up around a wet connection
A fitting that has been overtightened or visibly damaged
A leak that returns after the hose has already been replaced

If oil is visible at the connection, the source still needs to be confirmed. The leak may be coming from the hose, the fitting, the seal or the mating component.

Hose, fitting or seal: what might be leaking?.

A hydraulic fitting leak can have several causes. Replacing the hose alone may not fix the issue if the leak is actually coming from an adaptor, O-ring or sealing face.

Common leak points include:

The hose body close to the crimp
The crimped fitting connection
Threaded adaptors
O-rings or bonded seals
Quick couplings
Swivel fittings
Face seal connections
Damaged sealing surfaces
Cracked or worn fittings
Incorrectly matched threads

Correct identification matters because hydraulic fittings come in different thread types, sealing styles, angles and pressure ratings. Using the wrong fitting can cause leaks, damage the connection or create a repeat failure.

Why overtightening can make the problem worse.

A common response to a leaking fitting is to tighten it further. In some cases, this can make the leak worse.

Overtightening can damage threads, crush seals, distort fittings or damage the sealing face. If the wrong thread type or fitting style has been installed, tightening it harder will not create a reliable seal. It may also make the next repair more difficult.

A leaking fitting should be inspected properly so the cause can be identified before replacement or adjustment.

Common causes of hydraulic fitting leaks.

Hydraulic fitting leaks can occur because of wear, vibration, contamination, damage or incorrect component selection.

Common causes include:

Failed O-rings or seals
Damaged threads
Incorrect fitting or adaptor type
Mismatched thread forms
Loose fittings caused by vibration
Cracked or worn fittings
Damaged sealing faces
Contamination around the connection
Hose movement placing stress on the fitting
Incorrect hose routing or fitting angle
Corrosion or physical damage
Previous temporary repair attempts

If the fitting continues to leak after replacement, the issue may relate to the mating component, routing, hose movement or vibration rather than the fitting alone.

Information that helps ENZED® identify the correct fitting.

To help your local ENZED® Service Centre or HOSE DOCTOR® technician identify the correct replacement, provide as much detail as possible.

Bringing the existing hose assembly, fitting or adaptor to your local ENZED® Service Centre can help confirm the correct connection type and reduce the risk of mismatch.

Useful information includes:

Machine make and model
Equipment type and application
Photos of the leaking fitting and surrounding hose routing
Photos of both hose ends
Hose markings, if visible
Existing fitting or adaptor details
Thread size or connection type, if known
Whether the fitting uses an O-ring, face seal or other seal
Whether the leak occurs all the time or only under load
The existing hose assembly or fitting, if it can be safely removed

When quick couplings are the problem.

Quick couplings are common on attachments, trailers, implements and machinery that needs hydraulic connections changed regularly. They can leak if they are damaged, contaminated, worn or not fully connected.

Common quick coupling issues include:

Dirt or debris preventing a proper seal
Damaged coupling faces
Worn internal seals
Couplings that are difficult to connect
Pressure trapped in the line
Mismatched coupling types
Leaks only when the attachment is operating

If a quick coupling is leaking, avoid forcing the connection. The correct coupling type and condition should be checked before the equipment is returned to service.

How ENZED® can help with leaking hydraulic fittings.

ENZED can help identify and replace leaking hydraulic fittings, adaptors, couplings, seals and hose assemblies through local Service Centre support and HOSE DOCTOR® mobile service where available.

Your local ENZED® team can assist with:

Matching hydraulic fittings and adaptors
Identifying hose end and thread types
Supplying replacement hose assemblies
Supporting quick coupling and connector requirements
Checking whether the issue is with the hose, fitting, seal or adaptor
Assisting with onsite hose and fitting replacement where mobile support is available
Advising on common causes of repeat fitting leaks, including routing, vibration and connection mismatch

The aim is to help identify the correct component, reduce repeat leaks and get the equipment back into service safely.

When should you contact ENZED®?.

You should contact ENZED® if:

Oil is leaking from a hydraulic fitting or adaptor
A hose end is wet, weeping or dripping
A quick coupling is leaking
A fitting keeps loosening or leaking
The leak returns after a hose replacement
You are unsure what thread or fitting type is required
The machine cannot be safely moved
You need a replacement hydraulic hose assembly or fitting

Getting the fitting identified correctly can help avoid repeat repairs and unnecessary downtime.

Need help with a leaking hydraulic fitting?

Stop the equipment, make the area safe and contact your local ENZED® Service Centre.

If possible, have photos, hose markings, machine details and the existing hose assembly, fitting or adaptor ready. This will help the ENZED® team identify the right replacement faster.
