Burst Hydraulic Hose Repair: Why the Right Replacement Assembly Matters.

If a hydraulic hose bursts or splits wide open on-site, immediately stop using and isolate power to the equipment and safely depressurize all system accumulators before approaching the machine. Contact ENZED® on 13 13 62 for emergency on-site mobile hose repair to fabricate and install a new high-pressure replacement assembly.

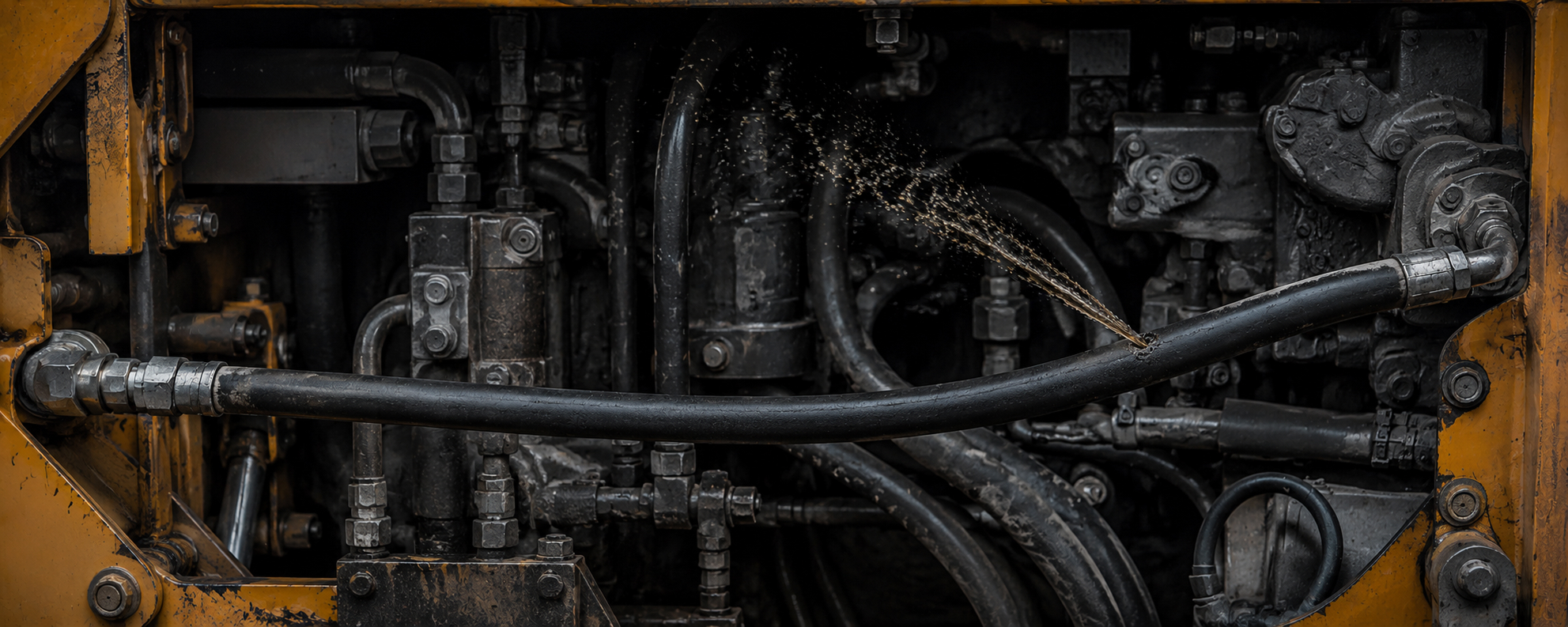

A burst hydraulic hose is a serious failure. It can stop machinery immediately, release hydraulic oil, create slip and contamination hazards, and place operators or nearby workers at risk if the system has failed under pressure.

Burst hoses are common across excavators, loaders, tractors, forklifts, trucks, tippers, cranes, compactors, access equipment, processing machinery and other hydraulic systems. The priority is to make the equipment safe, identify the correct replacement hose assembly and avoid temporary repairs that could fail again under load.

Important safety note

Hydraulic systems can operate under extreme pressure. This article is general information only and is not a substitute for site safety procedures, equipment manufacturer instructions or advice from a qualified technician. Always stop the machine safely, isolate the work area and ensure the hydraulic system is depressurised before inspection or repair.

First step: stop the machine and isolate the area.

If a hydraulic hose bursts while equipment is operating, stop the machine as soon as it is safe to do so. Follow site safety procedures, keep people clear of the failed hose and avoid contact with any hydraulic fluid or damaged hose components.

The hydraulic system should be depressurised by a trained person before the failed hose is inspected, removed or replaced. Any spilled oil should be managed according to site procedures to reduce slip, contamination and environmental risks.

Never attempt to hold, clamp or cover a burst hose while the machine is running or under pressure.

Why a burst hydraulic hose needs the right replacement.

A burst hose is usually a sign that the hose assembly can no longer handle the conditions it is operating under. Replacing it with the wrong hose, incorrect fittings or poor fitting orientation can cause repeat failure, equipment damage or further downtime.

A suitable replacement assembly needs to match the application, including:

Hose size and length
Pressure rating
Fluid compatibility
Fitting type and thread
Fitting orientation and angles
Bend radius and routing
Operating temperature
Movement, vibration and abrasion exposure
Machine or attachment requirements

A hydraulic hose assembly is more than a piece of hose. The hose, fittings, crimp and routing all need to work together for the application.

Why temporary burst hose repairs are risky.

Temporary fixes such as tape, clamps, sleeves, sealants or makeshift joins are not suitable for burst hydraulic hoses. Hydraulic systems can experience high operating pressure and pressure spikes, especially when equipment is lifting, digging, tipping, steering, compacting or working under load.

A patched hose may appear to hold briefly, but it is unlikely to withstand normal machine operation. It can fail without warning and create a greater safety risk than the original leak.

The safer approach is to replace the burst hose with a correctly specified hose assembly.

Common causes of burst hydraulic hoses.

Hydraulic hoses can burst for a range of reasons. Some failures are caused by age or wear, while others point to a mismatch between the hose assembly and the application.

Common causes include:

Incorrect hose pressure rating
Abrasion from rubbing against guards, brackets, frames or other hoses
Tight bends or poor hose routing
Kinking, twisting or crushing
Heat exposure
Repeated pressure spikes
Impact damage from worksite contact or debris
Poor clamping or insufficient hose support
Incorrect fitting selection or crimping
Hose fatigue from repeated movement
Contamination or damage during previous maintenance

If a hose bursts in the same location more than once, the replacement should not simply copy the failed setup without checking for routing, protection, pressure or installation issues.

Information that helps ENZED® prepare the right assembly.

To help your local ENZED® Service Centre or HOSE DOCTOR® technician identify the correct replacement, provide as much detail as possible.

If the failed hose can be safely removed, bringing the full assembly to your local ENZED® Service Centre can help confirm hose length, fitting orientation and connection type.

Useful information includes:

Machine make and model
Equipment type and application
Location of the burst hose
Photos of the hose routing and both hose ends
Hose markings, if visible
Hose length and diameter
Fitting types, thread details and angles
Any guards, clamps or abrasion points near the hose
Whether the hose has failed before
The existing hose assembly, if it can be safely removed

Can a burst hydraulic hose be repaired?.

In most cases, a burst hydraulic hose should be replaced rather than repaired. Once the hose structure has failed, the integrity of the assembly has been compromised.

The replacement assembly should be selected and made to suit the equipment, pressure requirements and operating environment. Where the failure was caused by abrasion, poor routing or repeated movement, it may also be worth reviewing hose protection or installation to reduce the chance of repeat failure.

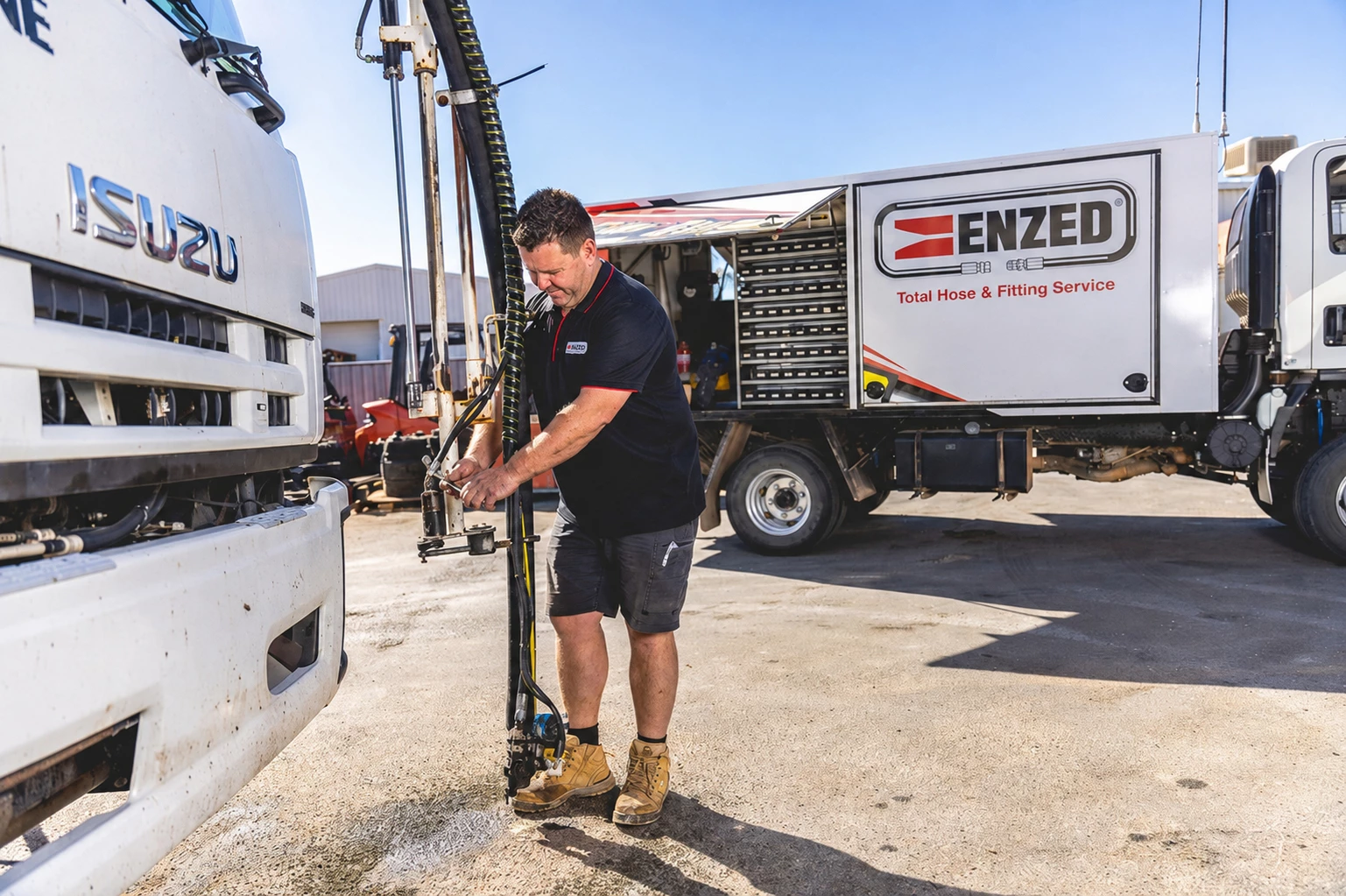

Onsite support when the machine cannot be moved.

A burst hose can leave machinery stuck in place, especially on construction sites, farms, quarries, civil works, yards, roadside jobs or remote locations.

Where available, ENZED® HOSE DOCTOR® mobile support can assist with onsite hose and fitting service, helping customers replace burst hydraulic hoses without moving the machine unnecessarily.

This can help reduce downtime when equipment cannot safely or practically be transported to a workshop.

How ENZED® can help with burst hydraulic hose repair.

ENZED® can help identify and replace burst hydraulic hose assemblies through local Service Centre support and HOSE DOCTOR® mobile service where available.

Your local ENZED® team can assist with:

Matching the failed hose assembly
Supplying hydraulic hoses, fittings and adaptors
Preparing replacement hose assemblies
Supporting high-pressure hose requirements
Identifying fitting, routing or abrasion issues
Assisting with onsite hose replacement where mobile support is available
Advising on causes of repeat hose failure

The aim is to help you get the correct replacement assembly fitted safely and reduce avoidable downtime.

When should you contact ENZED®?.

You should contact ENZED® if:

A hydraulic hose has burst
Hydraulic oil has sprayed or leaked from the machine
The equipment has lost hydraulic function
The failed hose cannot be safely identified
The machine cannot be moved
The hose has failed more than once
You need a replacement hydraulic hose assembly
You need mobile hose support where available

The sooner the failed assembly is identified, the faster the right replacement can be prepared.

Need help with a burst hydraulic hose?

Stop the equipment, make the area safe and contact your local ENZED® Service Centre.

If possible, have photos, hose markings, machine details and the failed hose assembly ready. This will help the ENZED® team identify the correct hose and fitting requirements faster.
